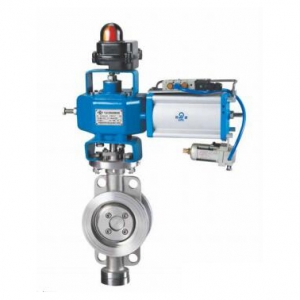

ZSSW-ES SERIES PNEUMATIC CUTTING BUTTERFLY VALVE – VAN BƯỚM ĐIỀU KHIỂN ĐÓNG MỞ BẰNG KHÍ NÉN DÒNG ZSSW-ES

Ⅱ Main parameters and performance
◆Nominal pressure:
1.6Mpa；2.5Mpa；4.0Mpa
◆Working temperature:-20℃-150℃
◆Leakage: GB/T7213-2005Ⅳ
◆Air supply pressure: 0.4Mpa~0.6Mpa
◆Control voltage: 24VDC/220VAC

Ⅲ Ordering demands;
1. When to make the order, please choose the correct model referring to the item Ⅳ   in the table. If not, you’d better provide the following information, such as the type, pressure, dimension, seal type, the main material, medium temperature, the control voltage of solenoid valve and others. The action type is formally air to open. If not, you could note it, including the special demands, such as in the anti-explosion area.
2. The choosing accessories;
Limit switches: 1) Contacted switches       2) Induction switches (24VDC/220VAC)
The material of connecting flanges;
1)      A3(Carbon steel)                                2) 304SS

Ⅳ The compiling specification of series products’ model;

Ⅴ Safety
ⅰ We make sure all the valves is very safe only if the material and pressure accord with the requirements in your order.
ⅱ According to the 4th part in the national standard(GB/T17213-2005/IEC60534-1999) of control valves industry area, it is the examination and testing on duty. We have test and examined the pressure and material following the testing report so that we are sure the safety of valves. The technical demands as followed,
1.Material testing
The physical test and chemical composition of the material for producing control valves accord with the standard of control valve or the concerned requirements in the order.
2.the static pressure testing in the liquid
All the compositions of control valve, even no actuator, which must be finished the static testing in the liquid according to the concerned pressure. i.e. it is tested by 1.5 times to the rating pressure.

Ⅵ  Principle of operation
The cutting butterfly valve is made up of pneumatic actuator, butterfly valve body, solenoid valve, and air filter, air channel components, connecting and fastening pieces and so on. It finishes the position controlling from full open to full close by the solenoid valve. Then, the signal (e.g., 24VDC, 220VAC) from the controlling instrument or manual tool operating will control the solenoid valve, which output the signal of air pressure at once to impulse the actuator so that it finishes the position controlling from open to closed by the wheel box to drive the butterfly valve trim.

Ⅶ Installing, usage and maintenance
◆ The position of installing the butterfly valve would be in the place as standing by the building platform 、a walking block ect. in order to having the best watching、adjusting、Operating、maintenance and repairing.
◆The pneumatic butterfly valve may horizontal fix or vertical installing.
◆When to install the valve body, the medium must be flow to in a direction from the arrows on the valve body.
◆You would be added to lube oil in the wheel box of the actuator and the joints for half year at least.
◆The waste materials should be removed before installation of piping systems. Once installed, the position of the valve body must be opened completely to sweep by blowing the wind into a pipeline.
◆There are two screws(M12 ～ M20)  on the upper end of the cylinder of the pneumatic actuator and the lower end of the box, which is used for adjusting the position from fully open to fully close.

Ⅷ Storage
Control butterfly valve had better be kept in the room among 5℃-40℃ temp. and ≤90% in the humidity. You’d better make sure there are no corrosive characteristics and other bad components in the air.

Ⅸ Packing and transportation
The packing material must accord with the concerned packing standard and demands. The packing must be intact and whole. It should have the own symbol against rain or dust and how to lay up. You should prevent the strong shaking in order to protecting the packing well in the journey of transportation.

X、ZSSW-ES pneumatic cutting buttering valve(single acting)

1. Valve body                2 Pressure dish        3. Seal ring                    4. Butterfly plant
